The Standard View 2

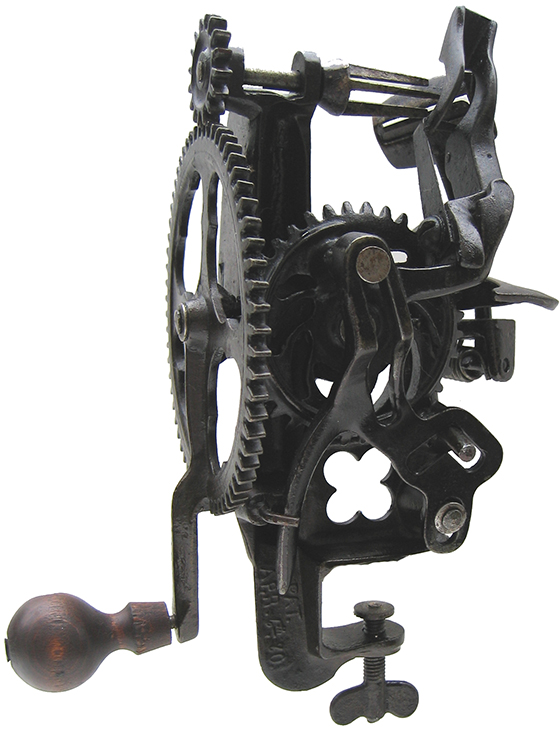

The
chipper arm pivots on a shaft at the base of the frame near the cloverleaf
cut out. A large pin attached to the center wheel pushes the chipper
arm forward around the apple and then pulls it back across the apple
allowing the blade to chip the apple to the core. The chipper arm is
acting as a third-class lever.
|
