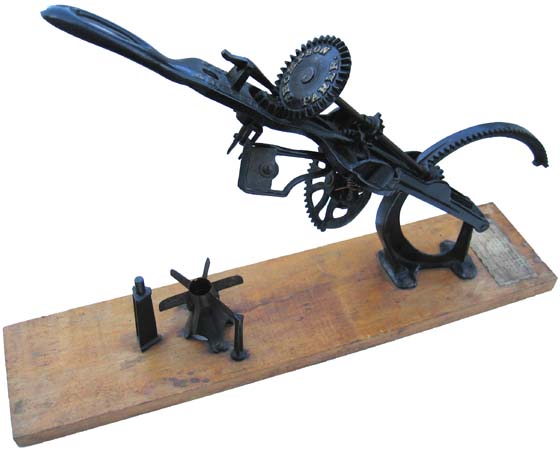

Thompson
View 2
According
to Thornton (1997), the Thompson was offered exclusively in Western Maryland

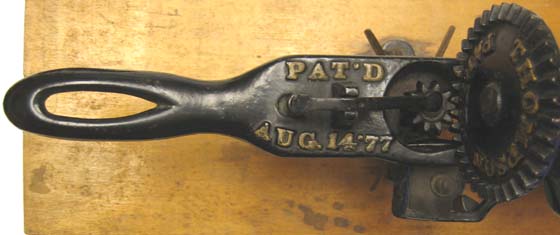

by Coleman (p.140). The Thompson handle is pictured below. Inbetween
the word PAT'D and the date AUG. 14 '77 is a first-class lever. As the
lever comes into contact with the metal stand mounted in the board it
pivots. The other end of the lever pushes the fork gear's axle
downward. The axle of the fork gear is equipped with a flat piece of
metal oriented
between the three prongs of the fork. As the axle and its flat metal
piece are forced downward it removes the core from the fork. Thus the
axle in the fork gear acts as a push-off on the Thompson. See a close-up
of the Thompson push-off.
|
