Epicyclic or Planetary Gears
In
a planetary gear system one or more gears rotate around a central

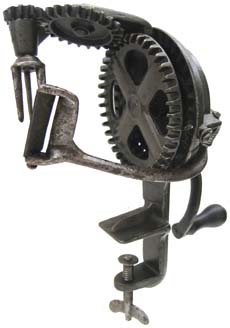

gear. F.W. Hudson’s Improved turntable marked with an 1862
patent date and the slightly different Hudson & Leslie use a
planetary gear system to rotate the fork carrying the apple in a
circular motion (right).
As
you crank the handle a small central gear (the sun) rotates a larger gear
(the planet, pictured to the left). The planet gear also meshes with a
stationary outer ring gear. As the planet gear rotates it also revolves
around the
smaller
central
gear. This planetary gear is attached to a metal assembly that carries
the fork and apple. The result is a turntable in which the apple rotates
and
revolves
near a stationary blade instead of a blade revolving around the apple,
as seen in most turntables. The metal assembly also has a lip that pushes
the paring arm away from the pared apple. Unfortunately, one must study
this mechanism by peering inside the parer while it is cranked. The fork
gear and the gear to which it is meshed are also epicyclic and are easy
to view.
|
